When you have limited space or wish to maximise your existing OEM switch locations this dual switch doubles the number of switches you can install, without the need to damage your vehicles dash by cutting additional holes.

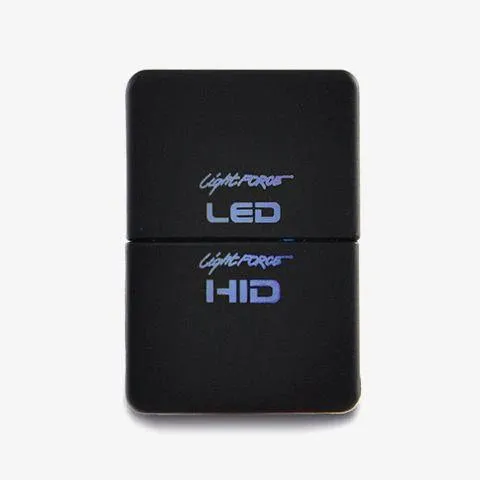

This OEM style switch feature the HID and LED icons for use with the HTX Hybrid driving lights available for the following vehicles without any modification to the original dashboard. Suitable for Toyota Prado 150, Hilux late 2015 onwards and 200 Series Landcruiser. Also suitable for Ford Ranger PX MK2, MK3 and Holden Colorado when utilising the Lightforce switch fascia.

• Single powered input feeding two independently switched outputs
• Dual coloured illumination powered via existing dash light circuit
• Suitable for both positive and negative switched vehicles
• Harness included (300mm in length)
• Current rating 3 amps @ 12v
• Australian design patent

Illumination is only activated when the vehicles dash lights are on, blue illumination with switch in the off position with green illumination when the switch is on. The switches can function independent of the dash lights, however will not illuminate until the vehicles dash lights are activated.

A single input activates both the top and bottom switches, so if you have a series of dual switches they will need to be grouped into lighting (active with Hi beam) or active with a constant power or ACC on power. The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps.
